At the Zahn Innovation Center, we specialize in the production of high-quality, low cost rapid prototypes of both hardware and electronics. With a range of technologies at our disposal, we are the perfect one stop shop for all your prototyping needs. Learn more about prototyping below or send your CAD file to our team of electrical, mechanical engineers and prototyping experts to get a free quote.

What is Rapid Prototyping?

Rapid Prototyping is often used to produce a physical sample of a design concept. It can be used to evaluate form, fit and function and to test out new and innovative ideas.
Prototypes are often made of less robust, and therefore less expensive, materials. And “rapid” is critical to many of our clients because they need to produce a physical part quickly in order to validate a design or to capture a fleeting sales opportunity.



Benefits of Prototypes

  • Show your customers and investors a model of your product
  • Demonstrate the appearance, dimensions and features of your product
  • Test your design for its suitability
  • Save time and money by identifying and reducing design flaws
  • Improve and streamline the production process
  • Reduce your work load when the time comes to manufacture
  • Create multiple versions with different colors, surface textures, etc.

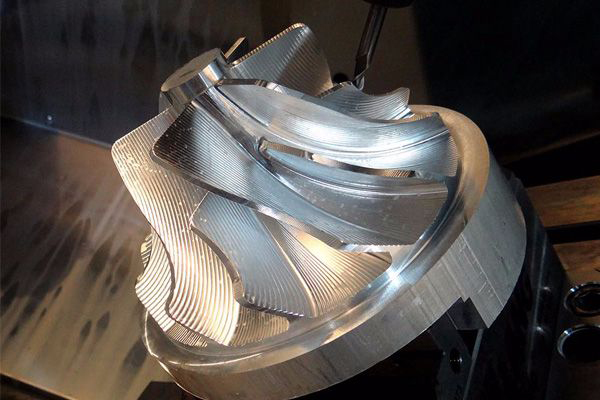

CNC MACHINING

Our CNC lathes enable high speed and high quality turning of both plastics and metals. The turning process allows for complex external geometries and internal bores to be generated.  Our turning capacity is available for one-offs through to batch production of your components.
Our CNC milling machine facility can manutfacture the most simple to the most complex wood, metal, or plastic part.
Our general tolerances for CNC machining of metals is DIN-2768-1-fine and for plastics DIN-2768-1-medium. Tolerances are greatly affected by part geometry and type of material. Our project managers will consult with you on every part of your project and will seek to provide the highest degree of precision possible.

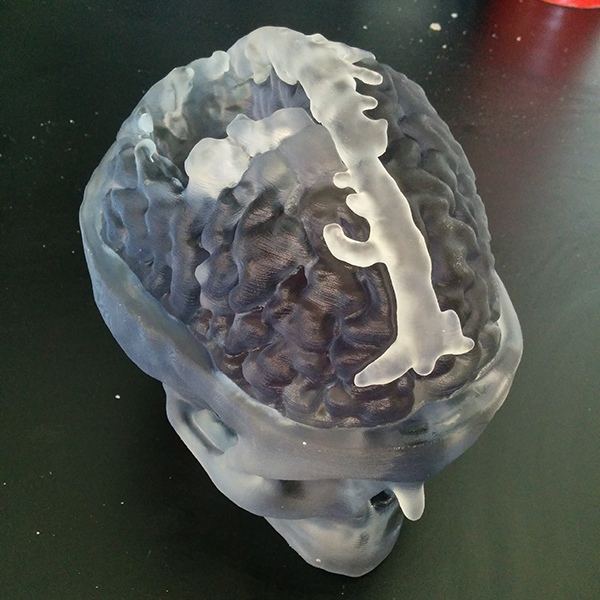

3D PRINTING

We provide high quality 3D printed parts utilizing the best additive manufacturing technologies available. We produce highly detailed plastic parts for end use products and functional prototypes. If you’re in need of something quickly, we can rapidly create prototypes in high detail resin and photopolymers. These rapidly-produced prototypes are perfect for anything from medical use all the way to engineering samples and show models. Our extensive engineering and product design experience will ensure the best options for your prototyping and low volume production needs.

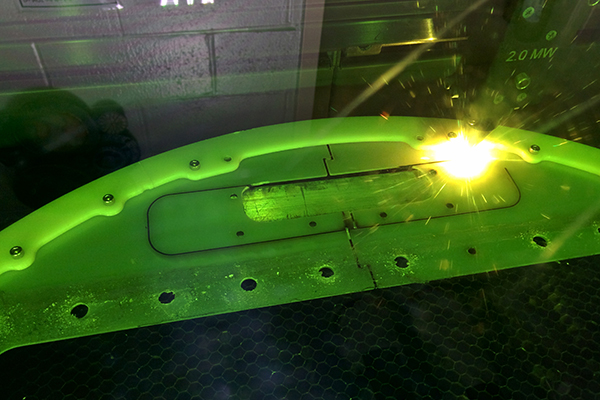

LASER CUTTING

Lasers are just so versatile! It is fantastic what can be done with clever design, good material selection, highly trained laser operators and the best in laser machinery. Our laser cutting production facility enables us to offer fabrication and finishing services, so we can now assist with even more of your project, from creation to completion! We’re continually blown away by client designs and can’t wait to see what will come in next, so  tell us your ideas and we’ll work with you to see how it can be done!



All client work is professionally produced on one of our industry leading lasers. With a minimum order quantity of only $99 we can offer one offs or prototypes, as well as full production services. Provide us vector drawings and details of materials and quantities required and we will quote accurately for your project. If unsure about the laser process, check our website, or discuss with us directly.



Our drawing resources explain what drawings are required for laser work and how to prepare them, including free software downloads. If you get stuck, let us know, or we can quote for preparing your drawings. Standard turnaround is 2-3 working days, but we are often booked a week in advance. So get us your designs in without delay and we’ll do our best to fit you in. We offer same day NY couriers, and fast US and worldwide delivery.

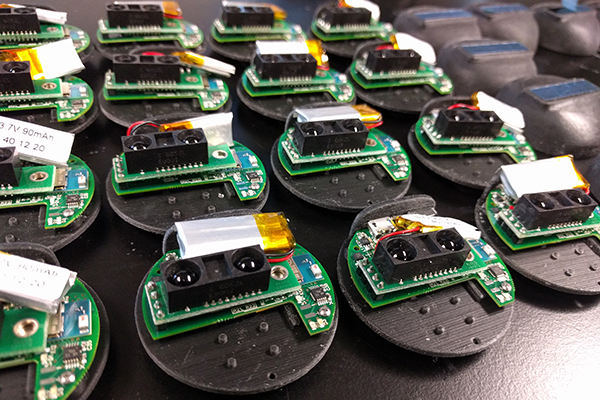

CIRCUIT BOARD PRINTING

Our advanced circuit board prototyping facility utilizes the latest technology in circuit board printers to prototype short runs of extremely high end boards.
Zahn Innovation Center prototyping service gives you complete control over your order. Our online PCB prototype shop can turn even the most complicated designs into working prototypes quickly and with minimal fuss.
Making a prototype PCB is your chance to see the first functional version of your design. Before going to volume or batch production, this is your chance to iron out any design kinks, improve the allocation of materials and impress stakeholders or investors with an interest in your project.
Letting an expert handle the production of your printed circuit board prototype doesn’t mean giving up control. Our free consultation and circuit printing facility gives you an unmatched level of influence over your order and your finished product.

for more information or to receive a complimentary quote, please email Devin@zahncenternyc.com
